CS180 · Project 3

Image Warping and Mosaicing

By Kourosh Salahi · CS180/280A: Computer Vision & Computational Photography

The goal of this project is to compute homographies, perform image warping, and blend multiple images into seamless mosaics. This part focuses on implementing warping, resampling, and compositing entirely from scratch. Then, We get to automated feature detection, as well as feature matching, ANMS, and RANSAC.

A.1 — Shooting and Digitizing Pictures

Three sets of overlapping images were taken by rotating the camera about a fixed center of projection. These serve as the input pairs for homography estimation and mosaicing.

Panorama — Left
Panorama — Right
Grimes — Left
Grimes — Right
Engineering — Left
Engineering — Right

Each pair was taken with around 50% overlap for reliable point matching and homography recovery.

A.2 — Recovering Homographies

To compute the homography H between two images, we solve a linear system of equations constructed from corresponding points (x, y) in image 1 and (u, v) in image 2. Each correspondence contributes two equations:

[x  y  1  0  0  0  -ux  -uy] [h1]   [u]
[0  0  0  x  y  1  -vx  -vy] [h2] = [v]
                              [h3]
                              [h4]
                              [h5]
                              [h6]
                              [h7]
                              [h8]

Stacking all correspondences yields an overdetermined system Ah = b, which is solved in the least-squares sense. The final 3×3 homography matrix is reconstructed by appending h9 = 1.

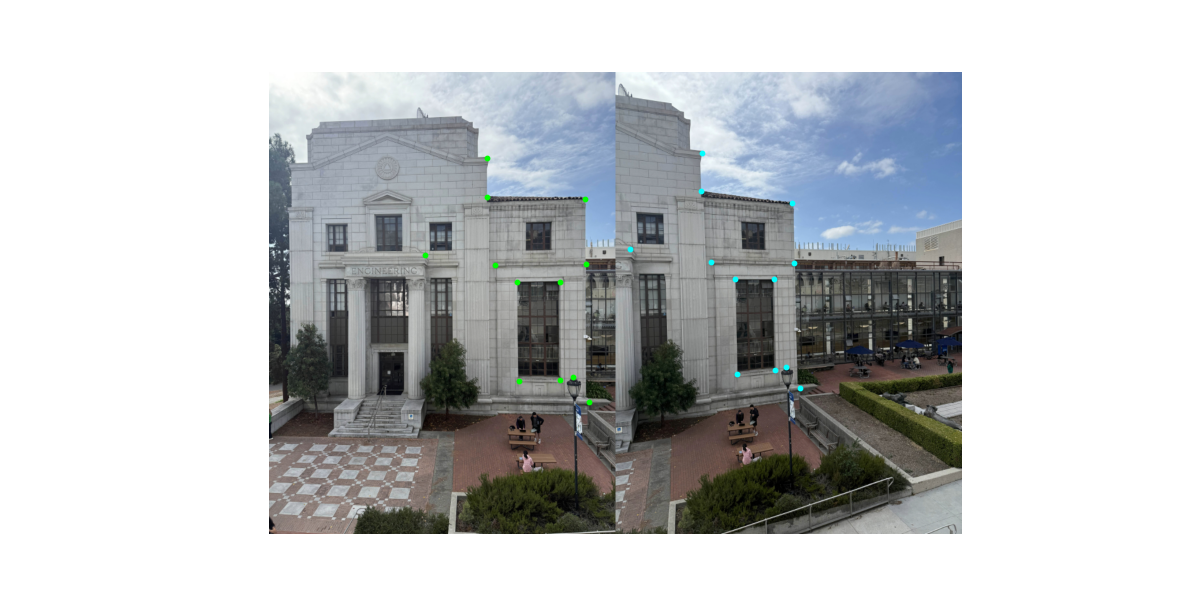

Engineering Correspondences
Panorama Correspondences

Compute H Implementation

def compute_H(im1_pts, im2_pts):
    n = im1_pts.shape[0]
    A = []
    b = []

    for i in range(n):
        x, y = im1_pts[i]
        u, v = im2_pts[i]

        A.append([x, y, 1, 0, 0, 0, -u*x, -u*y])
        A.append([0, 0, 0, x, y, 1, -v*x, -v*y])

        b.append(u)
        b.append(v)

    A = np.array(A)
    b = np.array(b)

    H = np.linalg.lstsq(A, b)[0]
    H = np.append(H, 1)
    H = H.reshape((3, 3))
    return H, A, b

Panorama Homography

[[ 1.59186937e+00  3.61721279e-02 -4.22912313e+02]
 [ 2.28684629e-01  1.49595970e+00 -1.50886837e+02]
 [ 7.10364295e-04  1.93061382e-04  1.00000000e+00]]

Equations of the stacked system:

382.0 * h0 + 408.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -56536.0 * h6 + -60384.0 * h7 +  = 148.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 382.0 * h3 + 408.0 * h4 + 1.0 * h5 + -155092.0 * h6 + -165648.0 * h7 +  = 406.0

382.0 * h0 + 447.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -57300.0 * h6 + -67050.0 * h7 +  = 150.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 382.0 * h3 + 447.0 * h4 + 1.0 * h5 + -170372.0 * h6 + -199362.0 * h7 +  = 446.0

346.0 * h0 + 400.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -37368.0 * h6 + -43200.0 * h7 +  = 108.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 346.0 * h3 + 400.0 * h4 + 1.0 * h5 + -137708.0 * h6 + -159200.0 * h7 +  = 398.0

346.0 * h0 + 433.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -36676.0 * h6 + -45898.0 * h7 +  = 106.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 346.0 * h3 + 433.0 * h4 + 1.0 * h5 + -149472.0 * h6 + -187056.0 * h7 +  = 432.0

441.0 * h0 + 502.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -93051.0 * h6 + -105922.0 * h7 +  = 211.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 441.0 * h3 + 502.0 * h4 + 1.0 * h5 + -219177.0 * h6 + -249494.0 * h7 +  = 497.0

398.0 * h0 + 476.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -66466.0 * h6 + -79492.0 * h7 +  = 167.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 398.0 * h3 + 476.0 * h4 + 1.0 * h5 + -189050.0 * h6 + -226100.0 * h7 +  = 475.0

443.0 * h0 + 633.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -93916.0 * h6 + -134196.0 * h7 +  = 212.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 443.0 * h3 + 633.0 * h4 + 1.0 * h5 + -276432.0 * h6 + -394992.0 * h7 +  = 624.0

383.0 * h0 + 551.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -57450.0 * h6 + -82650.0 * h7 +  = 150.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 383.0 * h3 + 551.0 * h4 + 1.0 * h5 + -211799.0 * h6 + -304703.0 * h7 +  = 553.0

306.0 * h0 + 449.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -18972.0 * h6 + -27838.0 * h7 +  = 62.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 306.0 * h3 + 449.0 * h4 + 1.0 * h5 + -138618.0 * h6 + -203397.0 * h7 +  = 453.0

409.0 * h0 + 439.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -71984.0 * h6 + -77264.0 * h7 +  = 176.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 409.0 * h3 + 439.0 * h4 + 1.0 * h5 + -177915.0 * h6 + -190965.0 * h7 +  = 435.0

Engineering Homography

[[ 1.62486167e+00  2.23877645e-02 -4.10343843e+02]
 [ 3.80771099e-01  1.41534178e+00 -1.60794393e+02]
 [ 1.05300413e-03 -1.48710200e-05  1.00000000e+00]]

Equations:

270.0 * h0 + 317.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -6750.0 * h6 + -7925.0 * h7 +  = 25.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 270.0 * h3 + 317.0 * h4 + 1.0 * h5 + -82620.0 * h6 + -97002.0 * h7 +  = 306.0

378.0 * h0 + 149.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -56700.0 * h6 + -22350.0 * h7 +  = 150.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 378.0 * h3 + 149.0 * h4 + 1.0 * h5 + -52920.0 * h6 + -20860.0 * h7 +  = 140.0

547.0 * h0 + 220.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -167382.0 * h6 + -67320.0 * h7 +  = 306.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 547.0 * h3 + 220.0 * h4 + 1.0 * h5 + -123622.0 * h6 + -49720.0 * h7 +  = 226.0

550.0 * h0 + 332.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -170500.0 * h6 + -102920.0 * h7 +  = 310.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 550.0 * h3 + 332.0 * h4 + 1.0 * h5 + -182050.0 * h6 + -109892.0 * h7 +  = 331.0

555.0 * h0 + 571.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -177045.0 * h6 + -182149.0 * h7 +  = 319.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 555.0 * h3 + 571.0 * h4 + 1.0 * h5 + -303030.0 * h6 + -311766.0 * h7 +  = 546.0

392.0 * h0 + 334.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -64680.0 * h6 + -55110.0 * h7 +  = 165.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 392.0 * h3 + 334.0 * h4 + 1.0 * h5 + -128576.0 * h6 + -109552.0 * h7 +  = 328.0

433.0 * h0 + 534.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -91363.0 * h6 + -112674.0 * h7 +  = 211.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 433.0 * h3 + 534.0 * h4 + 1.0 * h5 + -226026.0 * h6 + -278748.0 * h7 +  = 522.0

430.0 * h0 + 363.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -89440.0 * h6 + -75504.0 * h7 +  = 208.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 430.0 * h3 + 363.0 * h4 + 1.0 * h5 + -153940.0 * h6 + -129954.0 * h7 +  = 358.0

504.0 * h0 + 364.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -138600.0 * h6 + -100100.0 * h7 +  = 275.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 504.0 * h3 + 364.0 * h4 + 1.0 * h5 + -180432.0 * h6 + -130312.0 * h7 +  = 358.0

504.0 * h0 + 533.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -139608.0 * h6 + -147641.0 * h7 +  = 277.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 504.0 * h3 + 533.0 * h4 + 1.0 * h5 + -259560.0 * h6 + -274495.0 * h7 +  = 515.0

526.0 * h0 + 528.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -155170.0 * h6 + -155760.0 * h7 +  = 295.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 526.0 * h3 + 528.0 * h4 + 1.0 * h5 + -268260.0 * h6 + -269280.0 * h7 +  = 510.0

377.0 * h0 + 216.0 * h1 + 1.0 * h2 + 0.0 * h3 + 0.0 * h4 + 0.0 * h5 + -56173.0 * h6 + -32184.0 * h7 +  = 149.0

0.0 * h0 + 0.0 * h1 + 0.0 * h2 + 377.0 * h3 + 216.0 * h4 + 1.0 * h5 + -77662.0 * h6 + -44496.0 * h7 +  = 206.0

Using more than four correspondences produced stable, low-error homographies suitable for accurate alignment.

A.3 — Warping Images

With the recovered homographies, I implemented inverse warping using both nearest-neighbor and bilinear interpolation.

Source — Painting

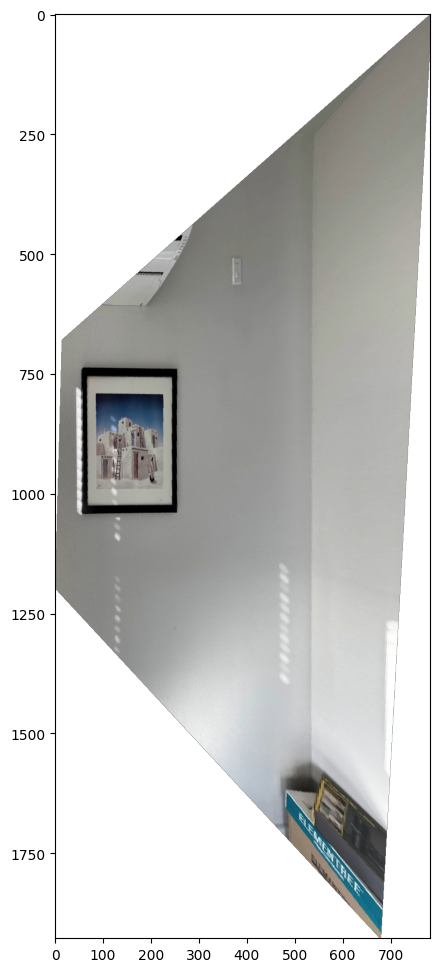

Warped — Nearest Neighbor
Warped — Bilinear
Source — Interstellar
Warped — Nearest Neighbor

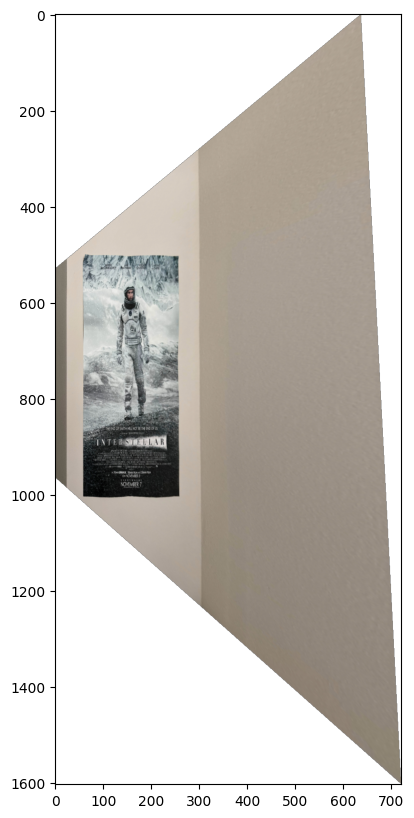

Warped — Bilinear

Bilinear interpolation yielded smoother results, while nearest neighbor was faster but more pixelated.

A.4 — Creating the Mosaic

The warped images were composited into mosaics using alpha weighted blending with a feathered mask for each images alpha.

Grimes Left
Grimes Right

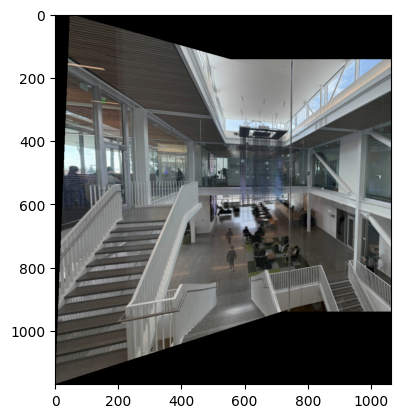

Grimes Mosaic
Engineering Left
Engineering Right

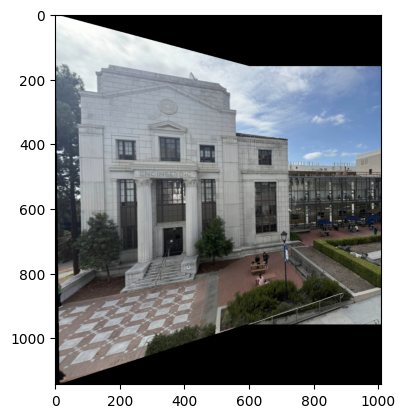

Engineering Mosaic
Panorama Left
Panorama Right

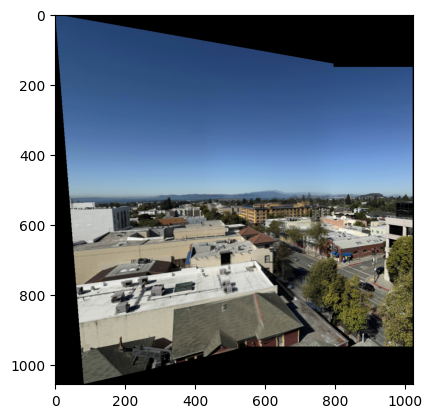

Panorama Mosaic

Method Description

The make_mosaic() function follows a multi-stage procedure to accurately warp and blend two input images into a unified panorama:

  1. Homography Estimation: The 3×3 matrix H is computed using corresponding feature points between the two images. This transformation maps pixels from the first image into the coordinate system of the second image.
  2. Canvas Determination: The warped corners of im1 and the original corners of im2 are combined to determine the overall mosaic bounds. The output canvas size is set to encompass both.
  3. Warping via Bilinear Interpolation: The first image is warped into the mosaic coordinate frame using inverse mapping and bilinear interpolation.
  4. Feather Mask Generation: A 2D alpha mask is created for each image using a falloff at the borders. The mask has values near 1 in the center and gradually decays to 0 near the edges, ensuring that overlapping regions fade naturally instead of forming sharp transitions.
  5. Compositing and Alpha Blending: Both images are placed into the mosaic canvas.
  6. Final Normalization: The accumulated weights are divided out at the end, leaving a visually smooth mosaic without visible seams or intensity jumps.

Edge Feathering

The feather mask fades to 0 near the edges, with a default distance of 20% distance away from the edges

B.1 — Harris Corner Detection

The Harris Corner Detector identifies points of strong local intensity variation. Using the provided harris.py helper, I detected corners and visualized them on each input image.

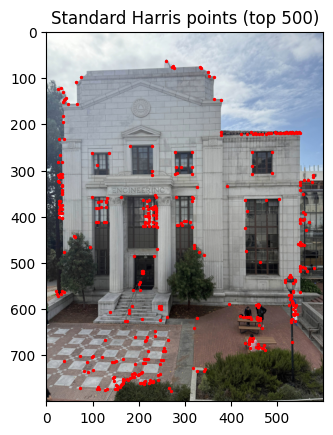

Harris Corners Overlay Standard
Harris Corners top 500
Adaptive Non-Maximal Suppression (ANMS) top 500

ANMS gives us strong corners, but also makes sure that they are distributed well throughout the image

Deliverables

B.2 — Feature Descriptor Extraction

For each detected corner, I sampled a 40×40 window centered on the feature downsampled to an 8×8 descriptor. Each patch was bias/gain normalized to zero mean and unit variance, improving robustness to illumination changes.

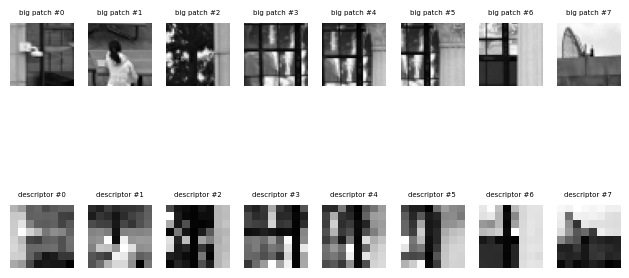

Engineering Building Feature Descriptors

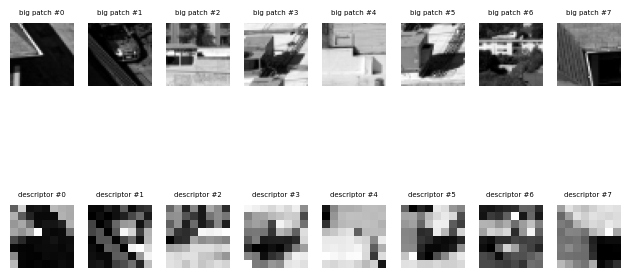

Panorama Feature Descriptors

Descriptors were extracted without rotation invariance for simplicity, following Brown et al., 2005.

Deliverables

B.3 — Feature Matching

Descriptors between two images were matched using the ratio test from Lowe. For each feature in image A, the nearest and second-nearest descriptors in image B were found; matches were retained if d1/d2 < 0.7 for d1 and d2 being the distance to the first and second nearest neighbor respectivly.

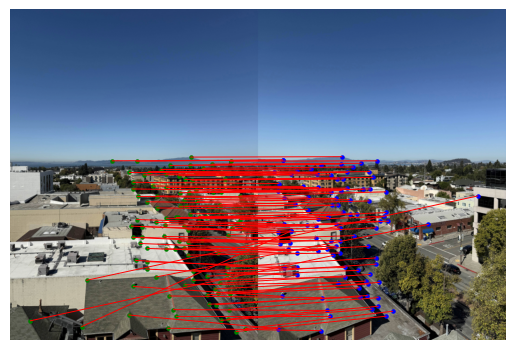

Panorama Matches
Matched Patches across each image

We see that there are still mismatched features. This will be taken care of in the next step, RANSAC. Interesting to see how many of the matched feature patches were still matched despite slight rotations, such as patch 7. This is likely because of the blurring, which makes small rotations less noticable when doing calculations.

Deliverables

B.4 — RANSAC for Robust Homography

I implemented 4-point RANSAC to estimate homographies while rejecting outlier matches. At each iteration, a random 4-point subset generated a candidate H; inliers were counted based on reprojection error < 3 px. The best-inlier model was then refined via least-squares on the set of all inlier points.

Manual v.s. RANSAC Stitching

Manual Panorama
Manual Engineering Building
Manual Grimes

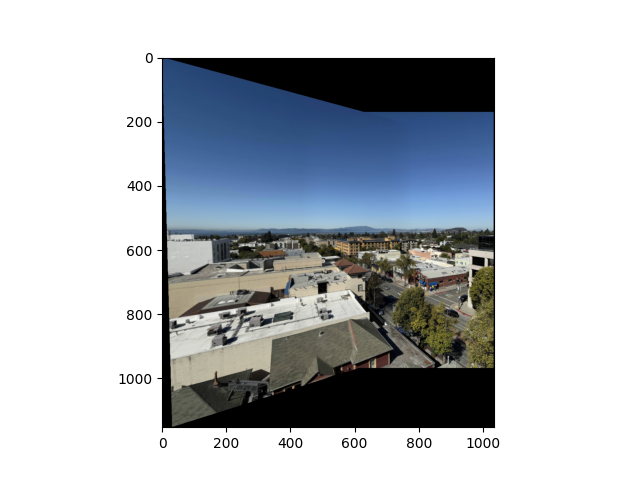

RANSAC Panorama

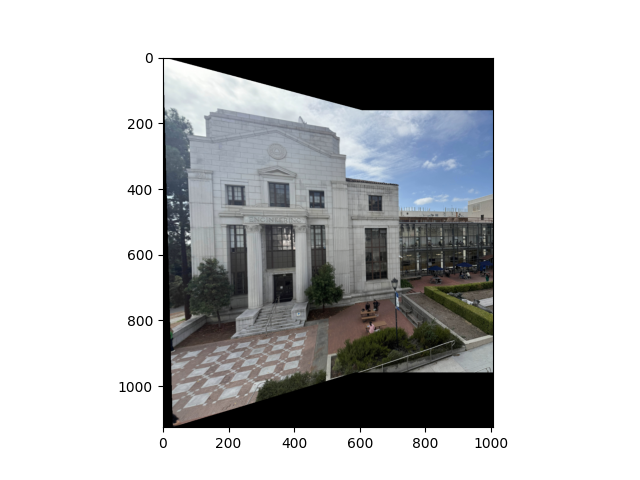

RANSAC Engineering Building

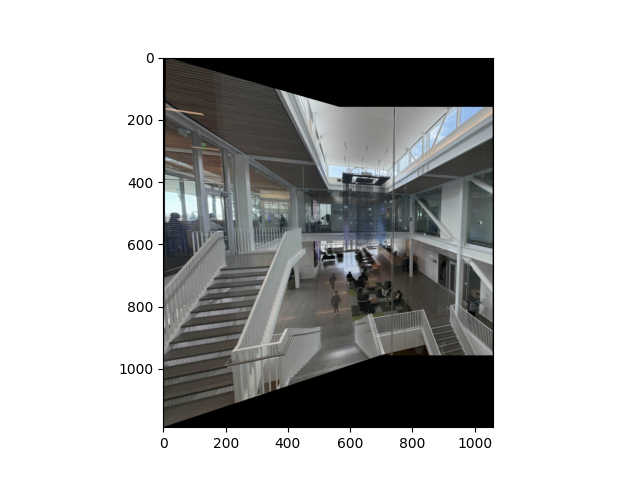

RANSAC Grimes

RANSAC reduced mismatches and produced nearly identical mosaics to manual point selection, validating the feature pipeline.

Deliverables

Conclusion

This project introduced the use of planar homographies for geometric alignment and blending. Implementing inverse warping and interpolation from scratch deepened my understanding of projective transformations and compositing techniques. Implementing ANMS, feature matching, and RANSAC gave me a deeper understanding of how automatic image blending is done. Overall, this was a cool project to work on!

Thanks for viewing my project! — Kourosh Salahi
